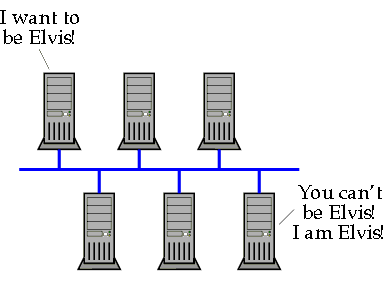

Figure 1.6a: Broadcast Unique/Unique Name Conflict

[Figure 1.6a: Broadcast Unique Name Conflict]


A unique name may not be registered if another node already owns that unique name.

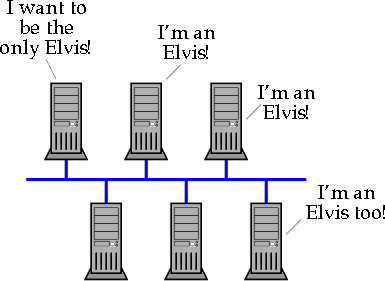

Figure 1.6b: Broadcast Unique/Group Name Conflict

[Figure 1.6b: Broadcast Unique/Group Name Conflict]


A unique name may not be registered if the same name is registered as a group name.

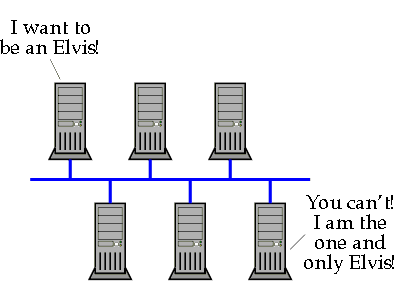

Figure 1.6c: Broadcast Group/Unique Name Conflict

[Figure 1.6c: Broadcast Group/Unique Name Conflict]


A group name may not be registered if another node already owns the name as a unique name.

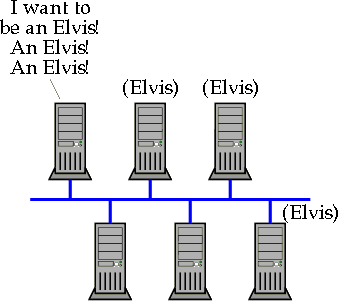

Figure 1.6d: No Conflict when Joining a Group

[Figure 1.6d: Broadcast Unique/Group Name Conflict]


Any node may join a group. Existing group members will not respond to the registration request.

(Elvis is the name of a popular clone of the venerable 'vi' text editor.)
