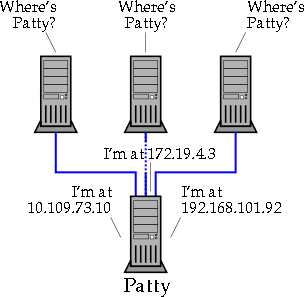

Figure 1.7: A Multi-Homed B Node

[Figure 1.7: Multi-Homed B Node]

Node PATTY has three interfaces, each with an IP address on a differnt subnet.
PATTY replies to each broadcast query with the correct IP address for the subnet.
